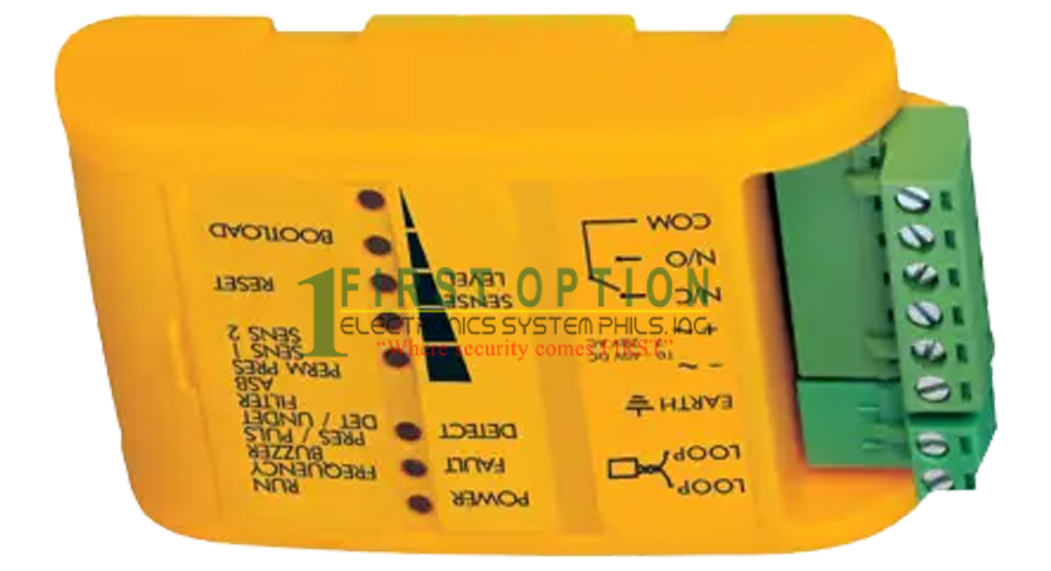

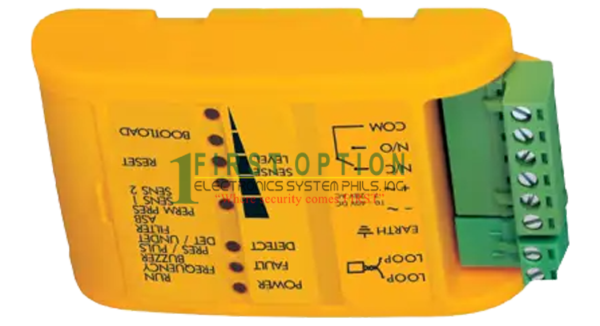

CENTURION-FLUX-SA-INDUCTIVE-LOOP DETECTOR
- Supply Voltage: 10V – 40V DC / 7V – 28V AC
- Standby Current: 50mA
- Output Relay Rating: 1A @ 125V AC
- Detection Time: 4ms @ 100kHz loop frequency / 10ms @ 40kHz loop frequency
- Visual Indicator: LED indicators showing Power, Loop Fault, Loop detection level (5LED’s), Detect
- Audible Indicator: Buzzer with indication of loop detection level and loop fault
- Detector tuning range: 15-1500µH
- Protection: Isolation transformer with 10kA lightning protection
- Dimensions: 105mm (L) x 60mm (W) x 26mm (H)
- Mass: 85g
- IP rating: IP50
